Job Application
This apparatus is used for the in place determination of the dry density of compact ,fine and medium grained soils and for layers exceeding 15 cm but not exceeding 25 cm thickness.
Details of apparatus:

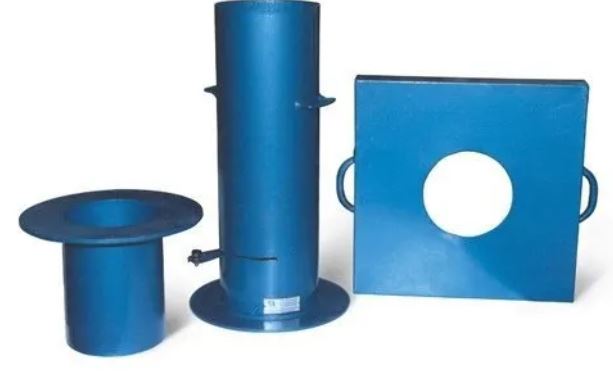

The complete apparatus consists of Large sand pouring cylinder 16.5 liter capacity, cylindrical calibration container, Internal dia 200 mm and internal depth 250 mm fitted with a flange, metal tray 450 mm square and 50 mm deep with a 200 mm dia hole in the centre,

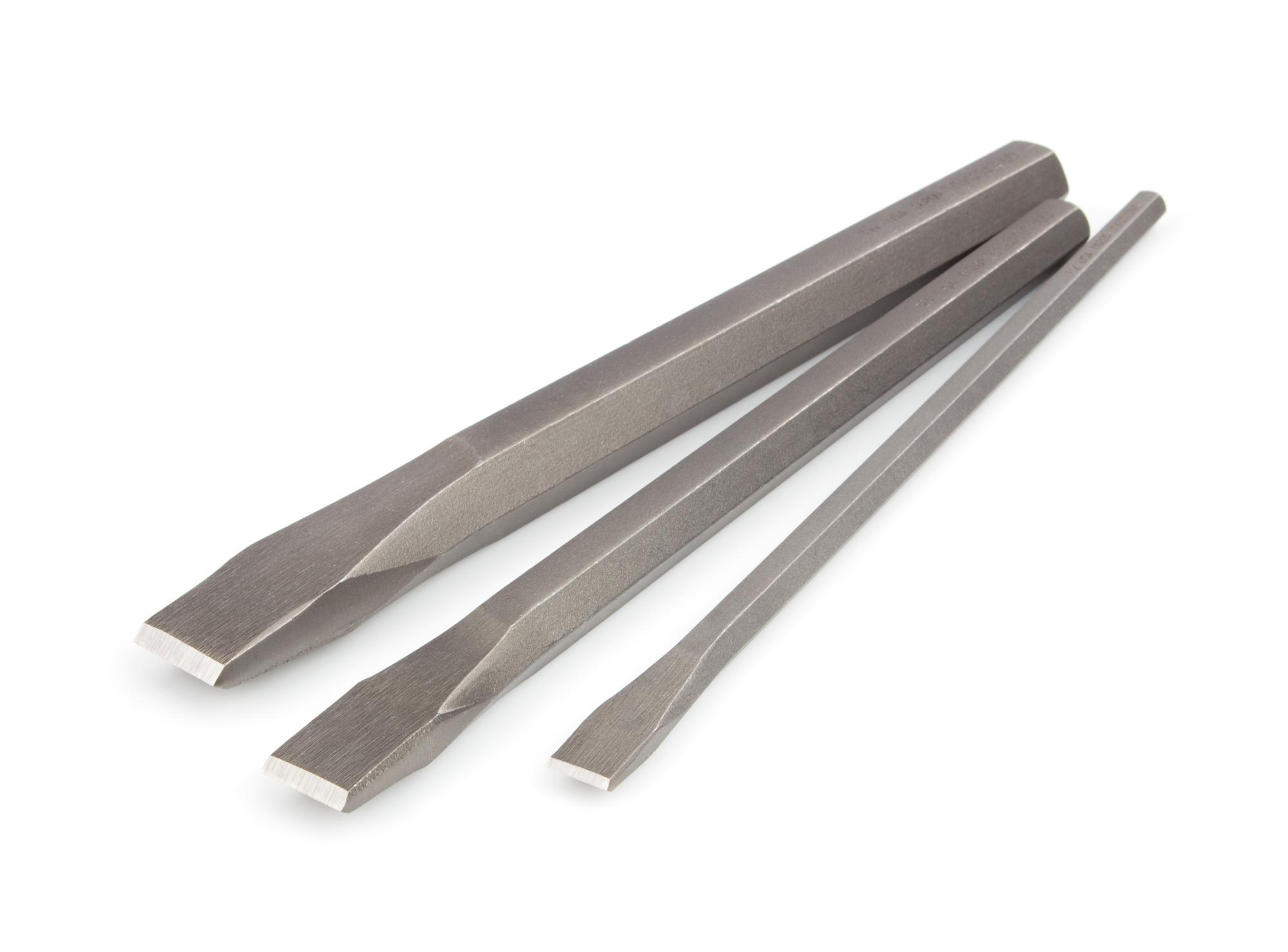

Without Excavating tools, Glass Plate, Electronic Balance, Metal containers, Standard Sand, Rapid Moisture meter, Laboratory Oven etc. which are essential for the complete test.
Click here for working video : https://www.youtube.com/watch?v=t_sHYp42gYM
|
Overall Dimensions |
480 X 510 X 630 (L X W X D) mm |
|
Net weight (in kg) |
18.4 kg |
