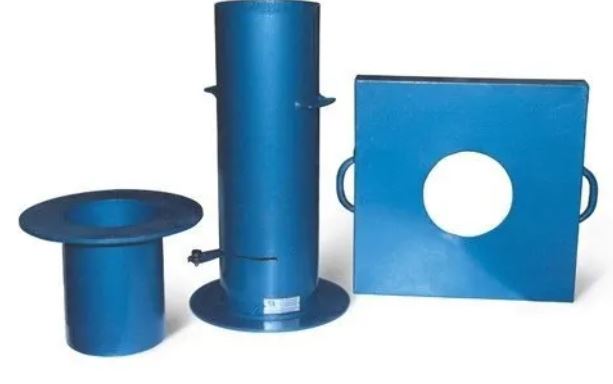

This apparatus is used for the in place determination of the dry density of compact,fine and medium grained soils and for layers not exceeding 15 cm Thickness. The complete apparatus consists of small sand pouring cylinder. 3 litre capacity fitted with Conical funnel and shutter, cylindrical calibration container, Internal dia 100mm and internal depth 150mm fitted with a flange, metal tray 300 mm square and 40 mm deep with a 100 mm dia hole in the centre, as per IS:2720 (Part - 28). Without Excavating tools, Glass Plate, Electronic Balance, Metal containers, Standard Sand, Rapid Moisture meter, Laboratory Oven etc. which are essential for the complete test.
Click here for working video : https://www.youtube.com/watch?v=t_sHYp42gYM
Overall Dimensions |
300 X 360 X 400 (L X W X D) mm |
Net weight (in kg) |
5.5 kg |
