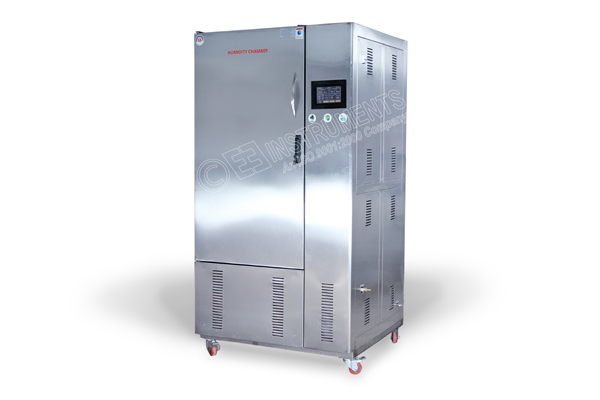

PHOTOSTABILITY CHAMBER-WITH PLC, HMI TOUCH SCREEN & 21-CFR SOFTWARE-REFRIGERATED-GMP MODEL-125 X 90 X 90 CMS

PHOTOSTABILITY CHAMBER-WITH PLC, HMI TOUCH SCREEN & 21-CFR SOFTWARE-REFRIGERATED-GMP MODEL-125 X 90 X 90 CMS

Model No: EIE-116RGT1012

None

Construction Details

  1. CE Certified
  2. Designed as per ICH guidelines to meet, WHO and USFDA requirement
  3. Fulfills storage conditions of  25°C, 40°C, 30°C etc.
  4. Also fulfills storage conditions of 30°C & 65% RH, 25°C & 40% RH, 40°C & 75% RH, 25°C & 60% RH etc (RH Provision at extra cost)
  5. Chamber equipped with PLC & Touch screen HMI system
  6. Highly accurate Individual control Loop for precise control of temperature
  7. Interior fabricated from mirror polished stainless steel  (S.S. - 316)
  8. Exterior body is fabricated from stainless steel  (S.S. - 304)
  9. Full size polycarbonate sheet inner door to inspect samples without affecting the chamber temperature.
  10. Properties of polycarbonate sheet door (Unbreakable, Un-scratchable, High temperature resistant, Robust, Air tight and Transparent)
  11. Sponge - type silicon gasket for air-tight sealing to avoid leakage of chamber uniformity
  12. Electrical wiring as per CE Compliances
  13. Chamber illumination by LED light with door switch.
  14. User friendly and tactfully designed chamber door and locking mechanism
  15. Aesthetic outer appearance and high quality
  16. Unit mounted on castor wheels for easy movement.
  17. Supplied complete with IQ/OQ/PQ Documents, Calibration certificates and Instruction manual.


Following advance features are available

  1. Equipped with 7" Touch screen HMI Controller and PLC System
  2. Equipped with GSM MODULE (Mobiler alert configuration) system for parameter deviation
  3. Equipped with Magnetic Door Lock Mechanism
  4. Password protected door access system
  5. Supplied complete with 21-CFR (PART-11) Compliance PC Software
  6. Audit trail generation in PC Software
  7. Equipped with In-Built Data logger (Uniformity module) system
  8. Also equipped with 4 Temp Sensor for data logging purpose
  9. Monitors Low water level status
  10. Facilitates automatic water filling system
  11. Auto resume after power failure


Salient Features for photo-stability operation

  1. Designed specifically to meet ICH and FDA requirements for photostability testing.
  2. Near UV and visible light testing is performed simultaneously.
  3. Calibrating Photon detectors measure lamp intensity on the product shelf.
  4. Lamp intensity (W/m2 or Lux) and exposure level (W-hr/m2 or Lux/hr) are conveniently displayed at eye level by a calibrated digital light (LUX) meter. The LUX Meter will be having measuring range from 400 Lux, 4000 Lux, 40 KLux, 400 KLux with an accuracy of ±5% rgd ±10d (10,000 lux)
  5. After a programmed exposure level is reached, the lamps automatically shut-off.
  6. To enhance reliability, internal air temp and Rh conditions are controlled throughout the photo stability test.


Salient Features of 21-CFR Compliance Software

  1. Multi Chamber data - Acquisition Software
  2. Generates graphical analysis of DATA as per - 21 CFR Compliance guidelines
  3. File encryption Facility
  4. Secure login facility
  5. Password protected. System access is controlled by the system supervisor
  6. Limit system access
  7. Limit module access
  8. Password expiration
  9. Bilateral user ID and password identification
  10. Access failure lock out
  11. System access logs
  12. System audit trail report.
  13. System Input / Output  logs
  14. Mean kinetic temperature calculation
  15. Maintains log of user activities like users logged in, login/logout time, and changes made by the user in software settings Audit Trail Reports.
  16. Ensure Gap-free Records
  17. Schedule Reports via Email
  18. Meet Tough Standards
  19. View Environments in Real-Time
  20. Flexible Alarm Management
  21. Consistent Alarm Acknowledgements
  22. Highly Secure & Temper proof
  23. Protection From Data Loss


Air Circulation

Temperature is maintained by a quiet running blower circulation throughout the chamber. Forced air circulated vertically down and re-circulated throughout the chamber for uniform temperature and humidity distribution.



Heating & Cooling System

Long lasting SS tubular heaters used as heating element. The stainless steel fins provided to ensure better heat transfer. Hermetically sealed compressor CFC free compressor (134 A gas) coupled with evaporation coil and condenser. All refrigeration components like expansion valve, driers, oil separators, pressure gauges and vibration eliminators provided. Reputed company make refrigeration system such as Emerson/Kirloskar Make


Door & Gasket

Robust type hinges fitted on the right hand side of the chamber with front opening single door. Leak proof double lined silicon gasket will be provided. The inner surface of the door will be provided with pre-polished stainless steel and will be mounted such that conduction is avoided.


Trays for samples

  1. Removable Stainless steel rod trays
  2. Strong enough to withstand heavy load of test specimens
  3. Such trays will also facilitate better air circulation.
  4. The distance between trays will be 15-20 centimeters.
  5. Number of tray supplied : 05 Numbers



Electrical controls

Relays, Contactors, SSR, MCB, Mains Switch, Fan control switch, compressor ON/OFF switch with indicator, Dry heater switch with indicator for safe and ease of operation.


Electrical Circuitry Wires

CE Certified : Inner circuitry wires with individual number tags for ease of servicing and maintenance


Safety Provisions

  1. Over temperature thermostat & thermal fuses provided for Heating system.
  2. Electrical overload cut off
  3. Time delay for compressor switch ON
  4. Electrical circuit breaker

PHOTOSTABILITY CHAMBER-WITH PLC, HMI TOUCH SCREEN & 21-CFR SOFTWARE-REFRIGERATED-GMP MODEL-125 X 90 X 90 CMS

Chamber Size 90 x 90 x 125 (W x D x H)
Chamber volume 1012 Liters
Inner chamber Stainless steel S.S. - 316 Mirror Polished
Exterior body Stainless steel S.S. - 304 Matt finished
Insulation Puff insulation
Insulation thickness 75mm
No. of trays 05 Numbers
Controlling System Highly advanced Touch screen HMI & PLC Control system
Display Digital LCD Display (7" Screen Size)
Temperature Range 10° C to 60° C
Temperature Accuracy ± 0.5° C
Temperature sensor Pt - 100 sensor
No. of Temperature Sensors 05 Nos (01 Main + 04 For data logging purpose)
Validation port hole 150 mm diameter, port hole provided with removable sealed cap.
Observation door Polycarbonate sheet door to inspect test samples without disturbing chamber operation
Illumination LED Light
Time & Date User adjustable Date & Time settings
PC Software 21-CFR (Part-11) compliance software as per USFDA Guidelines
Communication RS - 232/RS - 485 communication port
Magnetic door lock Password protected entry levels for Operator, Supervisor etc
Blower For uniform temp & humidity distribution
UV Tube Light Watts 20 Watts
No of Fluorescent Lights 04/05 Nos
Fluorescent light watts 20 Watts
No of UV Lights 04/05 Nos
Digital Lux Meter Range 400 Lux, 4000 Lux, 40 KLux, 400 KLux
None 40 FC, 400 FC, 4000 FC, 40 KFC
LUX Meter accuracy ±5% rgd ±10d (<10,000 lux)
None ±10% rgd ±10d (>10,000 lux)
LUX Meter Shall be procured at extra cost (Optional)

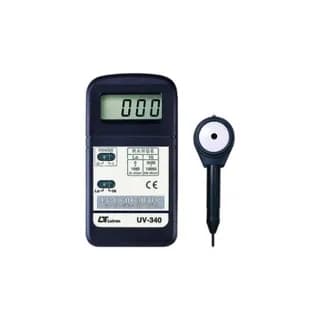

UV Meter measuring range 1999-19990 Lux
UV Meter resolution 1-10 Lux
UV Meter accuracy ±4%+2d
UV Meter Shall be procured at extra cost (Optional)
IQ, OQ, PQ IQ, OQ, DQ, Documents as per USFDA Guidelines, Validation Report and Instruction Manual.
Mobility On castor wheel
Power Consumption 230 Volts, 50 HZ, Single Phase, AC Supply
Power Supply 230 Volts, 50 HZ, Single Phase, AC Supply
