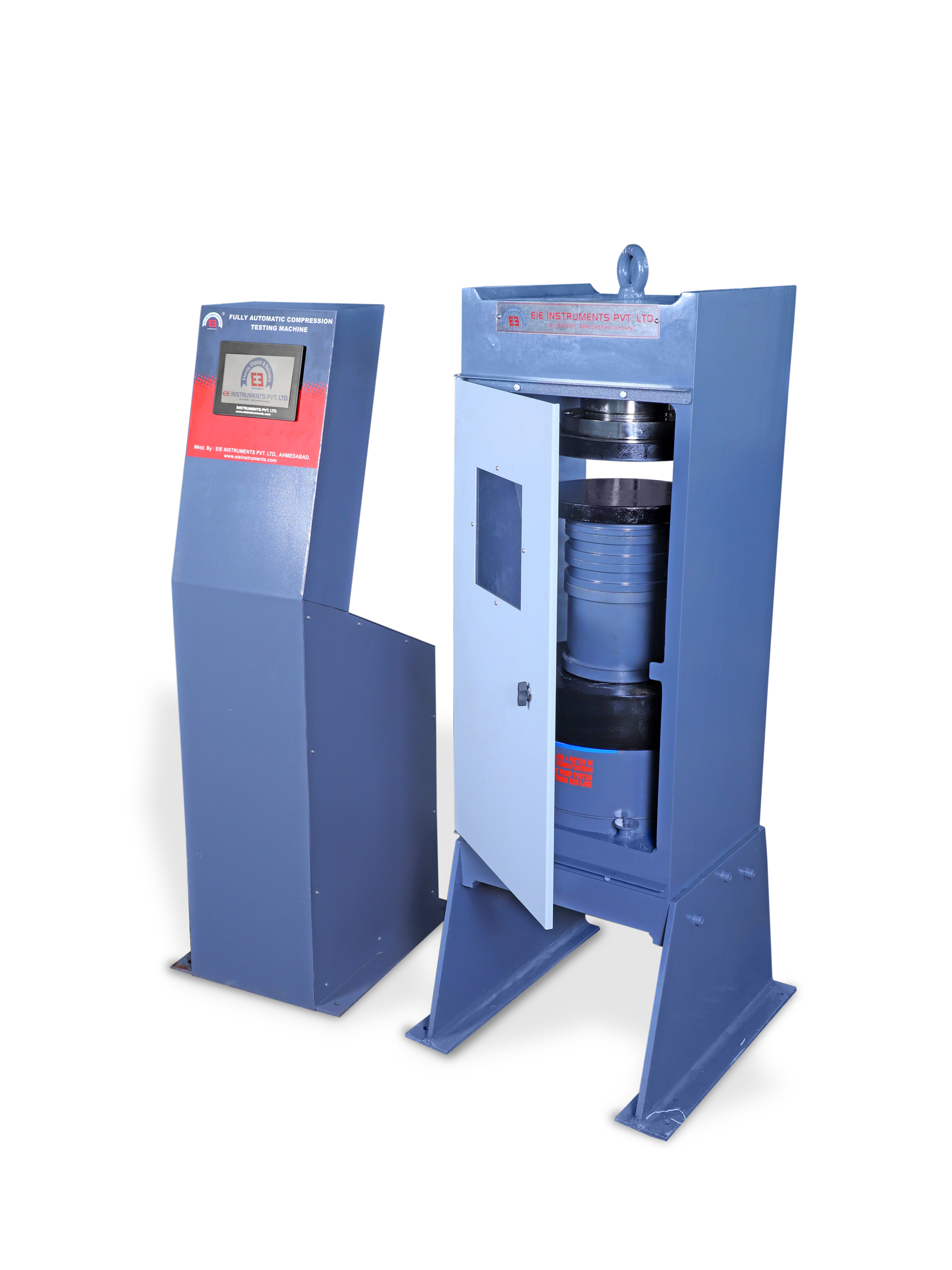

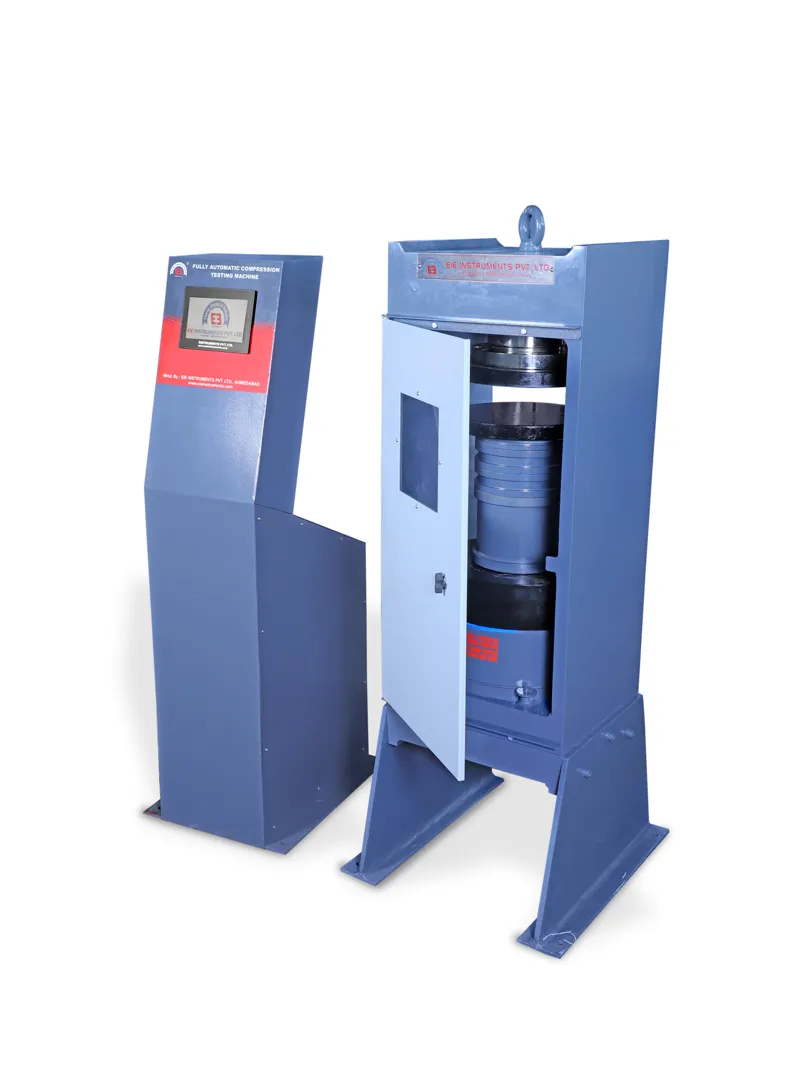

COMPRESSION TESTING MACHINE - 1000 KN - FOR LOAD CELL CALIBRATION - FULLY AUTOMATIC - SERVO CONTROLLED

Capacity

1000 Kn

Platen size in mm

200 mm Dia

Ram Dia in mm

165 mm

Ram Travel in mm

50 mm

Vertical daylight in mm

300 mm

Horizontal daylight in mm

300 mm

Least count

0.001 KN or better

Load indication and Control

7" Coloured touch screen controller

Accuracy

± 1%

Pace rate controlling accuracy

10%

Pumping

Motorized

Pump Speed

Dual speed

Motor

Servo motor

Reading

Digital

Release valve operation

Not Required

Auto stop after failure of specimen

Available, machine stops after completion of test

Auto Release of Pressure after specimen failure

Available, pressure release automatic after completion of test

Calculation of result

Automatic

Holding of Max.Load

Yes

Pace Rate or Rate of Loading indication

Yes

Operator skill to control Pace Rate

Not Required

Bar Graph

Not Required

Multi Channel operation

3 channel operation possible, flexural and compression frame can be attached

Saving of records

infinite records with Pen drive

Real time graph

Available, on controller itself

Printer interface (Direct connectivity to printer w/o computer)

In built

Flexural attachment

Possible, all calculations will be made automatically

Splitting Tensile Test

Possible, all calculations will be made automatically

LAN Connectivity

Possible, in built LAN port

Auto internal Calibration without proving ring

Yes

Piston over travel safety cut off

Available

Over load safety cut off

Yes

Shot circuit protection

Yes

Overall Dimensions

Weight approx in kg

600 Kg

Power Supply

230V AC, Single phase

Standard Supply

Spacers - 4 nos.

Pen drive

2.5 meter cord wire with plug

Pumping unit

Loading unit

Optional fittings at extra cost

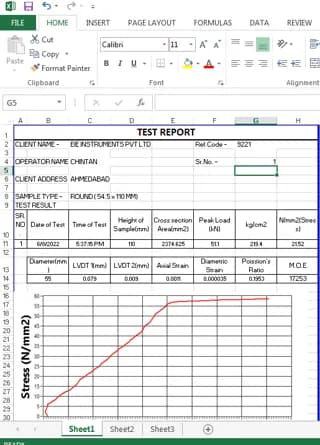

PC software

Displacement controlled operation

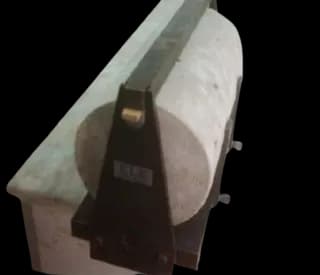

Modulus of Elasticity Calculation (MOE) attachment

Split tensile test attachment

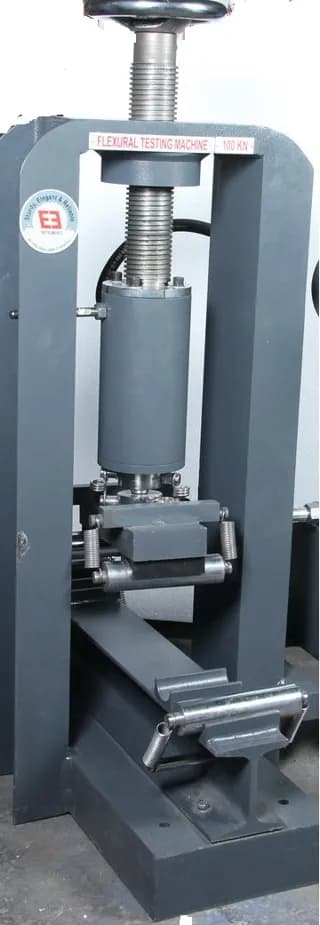

Flexural test attachment

Additional Load Frame - 500 KN for Cement test
