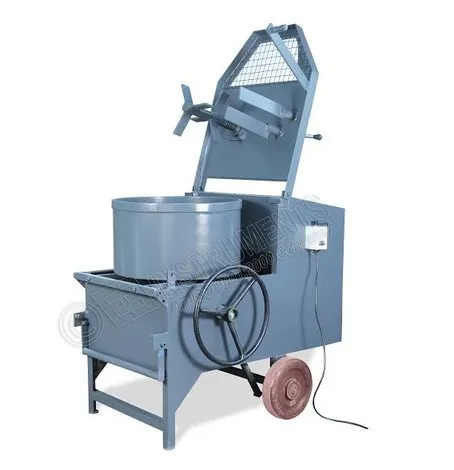

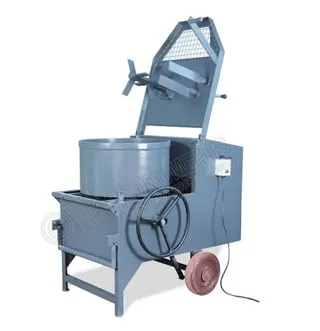

PAN MIXER-40 LTRS

PAN MIXER-40 LTRS

Model Number : TM-057B

Suitable to Cast 9 Cube Mould of 15 cm at a time in single batch.


Designed for mixing small quantities of concrete used in preparation of concrete cubes for testing in Laboratories. The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly and produce a mix of uniform consistency. This in turn gives consistent quality of cube specimens when casted in the moulds.


The concrete mixer developed in transportable on wheels. The design of the mixing paddles ensure uniform and efficient mixing of cement and aggregate in dry & wet conditions. The design also facilitates lifting of mixing drum with the help of steering wheel. The arrangement helps the operator to access the pan contents conveniently and emptying the mixture after completion of the operation. The drum is driven through a Heavy Duty Gear Box. Positive rotating motion of the drum is ensured by unique design of the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator. Electric supply motor, 3 HP, 440 V, 3 phase, AC.  Suitable to Cast 9 Moulds at a Time in single batch.


  1. Solid airless wheel.
  2. With motor cable & starter switch.
  3. Finished with D.A grey PU colour.
  4. Weight of the machine is approx. 300 kg

Pan dia

24" (60 cm)

Bottom plate

10 mm M.S.

Side wall plate

1.5 mm M.S

R.P.M

22-24 R.P.M

Electrical motor

CROMPTON /ABB / GODREG / OR EQUIVALENT Make

Gear box

Reduction Gear Box filled with Oil

Pan Volume

40 Ltrs.

Overall Dimensions

900 X 1000 X 1300 (L X W X D) mm

Weight (Approx.)

300 kg

Motor Power

3 HP, three phase, 440 volts

Mixing Capacity

80 kg of concrete

Cube capacity

9 no of cubes can be casted
