COMPRESSION TESTING MACHINE - 500 KN-AUTOMATIC PACE RATE CONTROLLED

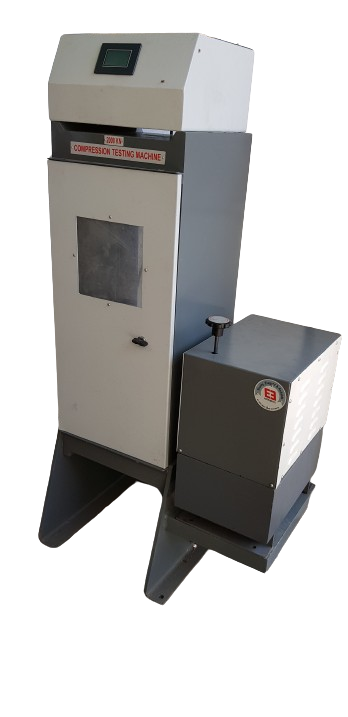

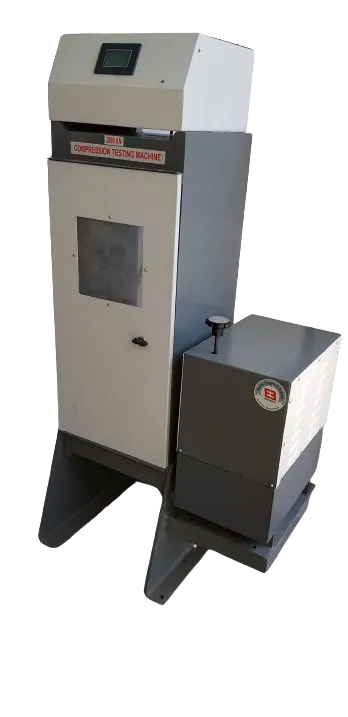

AUTOMATIC COMPRESSION TESTING MACHINE - 500 KN

Model Number : TM-042AC.500

This machine is essential for precise and efficient cement testing, ensuring compliance with industry standards critical to civil construction. It is widely used in construction projects and laboratories to validate the quality and compressive strength of Cement-concrete materials. Conforms to IS: 4031 (Part 6), EN 196-1, ASTM C109, ISO 679, BS 4550-3.4,JIS R 5201 and other international standards. Automatic Operation: Minimal user input required; automatic rapid piston approach, test speed adjustment, and motor stop after specimen failure.Adjustable pace rate (1 kN/sec to 10 kN/sec) with dual-stage pump for fast and precise execution. Robust Frame: High-stiffness welded frame with a heavy-duty spherical seat for accurate specimen alignment.PC software for two-way communication, result storage, and report printing.


Compliance With International Standards:

Our machine is designed to meet the stringent requirements of cement testing, ensuring compliance with the following international standards:

  1. IS: 4031 (Part 6)
  2. EN 196-1
  3. ASTM C109
  4. ISO 679
  5. BS 4550-3.4
  6. JIS R 5201
  7. IS: 14858 (2000)

Automatic Test Execution:

The machine automates the entire testing process for efficiency and accuracy. Key features include:

  1. Set Parameters: Enter the specimen dimensions and pace rate.
  2. Simple Operation: Place the specimen and center it on the lower platen.
  3. Fully Automated Testing:
  4. Rapid piston approach.
  5. Automatically maintains the set pace rate throughout the test.
  6. Determines stress and logs data without manual intervention.
  7. Stops motor and save the readings automatically upon specimen failure.
  8. Data Management:
  9. Stores all test results internally with date, time, and results in mPa, N/mm², or kg/cm².
  10. Results can be saved to an attached USB drive or communicated online to a PC.
  11. Live graph generation during the test on both the touch screen and connected PC.
  12. Optional built-in printer available for direct report printing.

Additional Features:

  1. Operates on 240V, 50-60Hz, single-phase power.
  2. Dual-stage pump for fast piston approach and precise execution.
  3. Conforms to EN 196-1, ASTM C109, ISO 679, BS 4550-3.4, JIS R 5201.
  4. Adjustable pace rate: 1 kN/sec to 10 kN/sec.
  5. Auto-stop functionality after test completion.
  6. Soft platen-to-specimen contact for smooth load rate control from the start.
  7. Servo motor-driven mechanism for enhanced reliability.

Frame:

  1. Four-column, high-stiffness welded frame for superior stability.
  2. Heavy-duty spherical seat for initial free alignment and automatic jamming during the test.
  3. Surface hardness of platen: 55 HRC, flatness tolerance: 0.03 mm (traceable certificate available upon request).
  4. Optional piston travel limit switch
  5. Emergency stop button for safety.
  6. Servo motor-driven design with live online graph displayed on a 7" touch screen.
  7. User-friendly graphical display.
  8. Displacement-controlled variant available (at extra cost).
  9. Stores up to 100 test results on the touch screen.
  10. Inbuilt USB drive for easy data transfer.

Salient Features of Data Manager PC Software (Optional)

  1. Two-way communication: Operate the machine via PC or touch screen controller.
  2. Results and graphs are saved directly in Excel format.
  3. Records customer details, specimen aging, cube identification marks, and testing date/time.
  4. Prints detailed reports directly from the computer.
  5. Allows selection of test parameters such as pace rate, sample size, and area.
  6. Supports various test types, including flexural, CTM, and aggregate crushing.

This machine is indispensable for precision cement testing, meeting the highest standards required for construction and civil engineering projects.

Capacity

500 Kn

Platen size in mm

200 mm Dia

Ram Dia in mm

120 mm

Ram Travel in mm

50 mm

Vertical daylight in mm

230 mm

Horizontal daylight in mm

230 mm

Least count

0.01 KN

Load indication and Control

4" Coloured touch screen controller

Accuracy

± 1%

Pace rate controlling accuracy

10%

Pumping

Motorized

Pump Speed

Dual speed

Motor

Stepper Motor

Reading

Digital

Release valve operation

Required

Auto stop after failure of specimen

Available, machine stops after completion of test

Auto Release of Pressure after specimen failure

Not Available, Need to release pressure manually after the completion of test

Calculation of result

Automatic

Holding of Max.Load

Yes

Pace Rate or Rate of Loading indication

Yes

Operator skill to control Pace Rate

Not Required

Bar Graph

Yes

Multi Channel operation

3 channel operation possible, flexural and compression frame can be attached

Saving of records

Possible-10 reading

Real time graph

Available, on controller itself

Printer interface (Direct connectivity to printer w/o computer)

In built

Flexural attachment

Possible, all calculations will be made automatically

Splitting Tensile Test

Possible, all calculations will be made automatically

Auto internal Calibration without proving ring

Yes

Piston over travel safety cut off

Available

Over load safety cut off

Yes

Shot circuit protection

Yes

Overall Dimensions

Weight approx in kg

292 Kg.

Power Supply

230V AC, Single phase

Standard Supply

Spacers - 3 nos.

Pen drive

2.5 meter cord wire with plug

Pumping unit

Loading unit

Optional fittings at extra cost

PC software

Displacement controlled operation

Modulus of Elasticity Calculation (MOE) attachment

Split tensile test attachment

Flexural test attachment

LAN Connectivity
