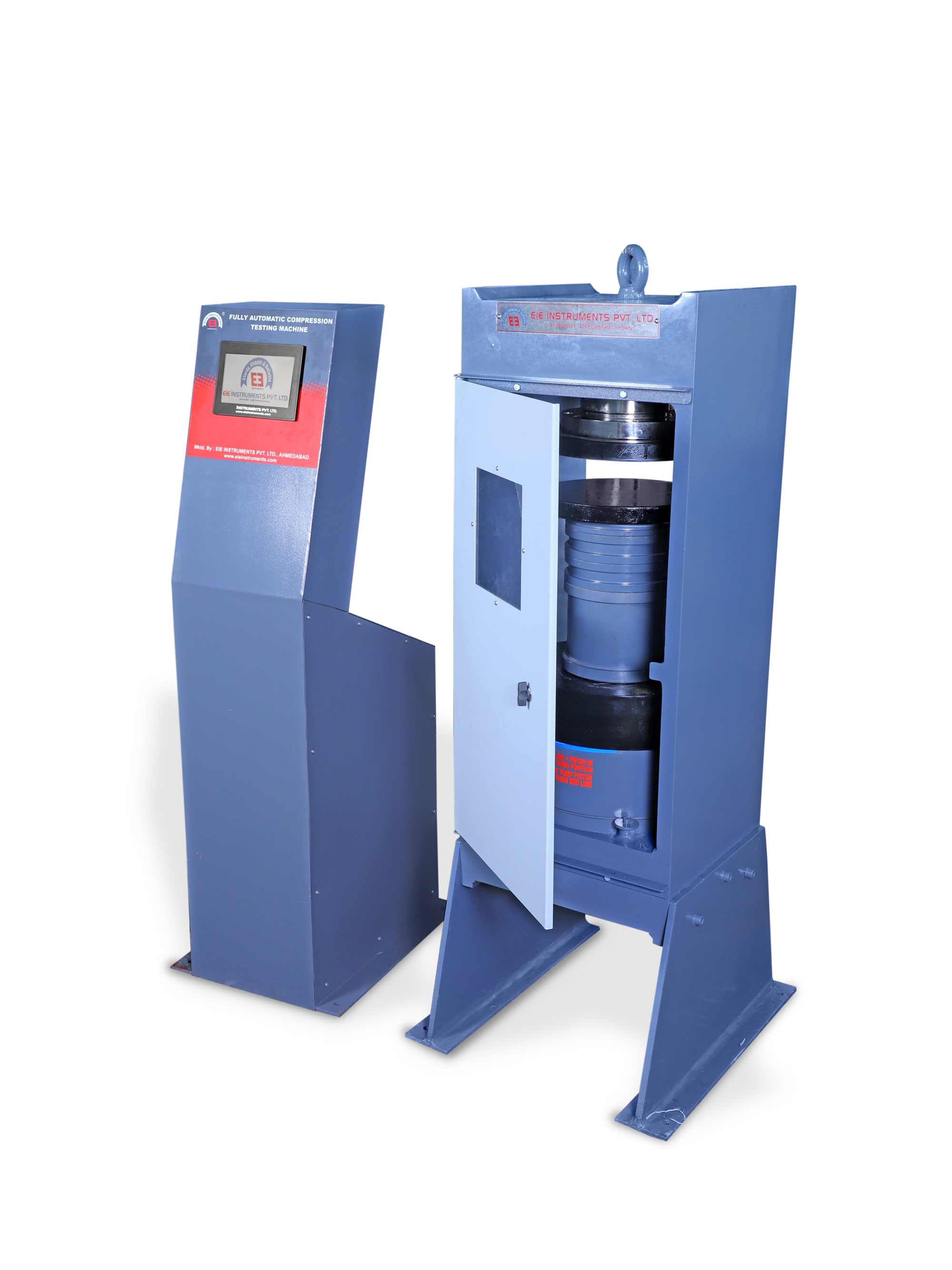

FULLY AUTOMATIC COMPRESSION TESTING MACHINE - 5000 KN

Compliance With International Standards:

Our machine complies with the following international standards:

1. EN 12390-4
2. ASTM C39
3. AASHTO T22
4. IS: 14858 (2000)

Automatic Test Execution:

The machine automates the entire testing process for efficiency and accuracy. Key features include:

1. Set Parameters: Enter the specimen dimensions and pace rate.
2. Simple Operation: Place the specimen and center it on the lower platen.
3. Fully Automated Testing:
4. Rapid piston approach.
5. Automatically maintains the set pace rate throughout the test.
6. Determines stress and logs data without manual intervention.
7. Stops motor and releases pressure automatically upon specimen failure.
8. Data Management:
9. Stores all test results internally with date, time, and results in mPa, N/mm², or kg/cm².
10. Results can be saved to an attached USB drive or communicated online to a PC.
11. Live graph generation during the test on both the touch screen and connected PC.
12. Optional built-in printer available for direct report printing.

Additional Features:

1. Operates on 240V, 50-60Hz, single-phase power.
2. Dual-stage pump for fast piston approach and precise execution.
3. Conforms to EN 12390-4, ASTM C39, AASHTO T22, IS: 14858 (2000)
4. Adjustable pace rate: 0.1 kN/sec to 10 kN/sec.
5. Auto-stop functionality after test completion.
6. Soft platen-to-specimen contact for smooth load rate control from the start.
7. Servo motor-driven mechanism for enhanced reliability.

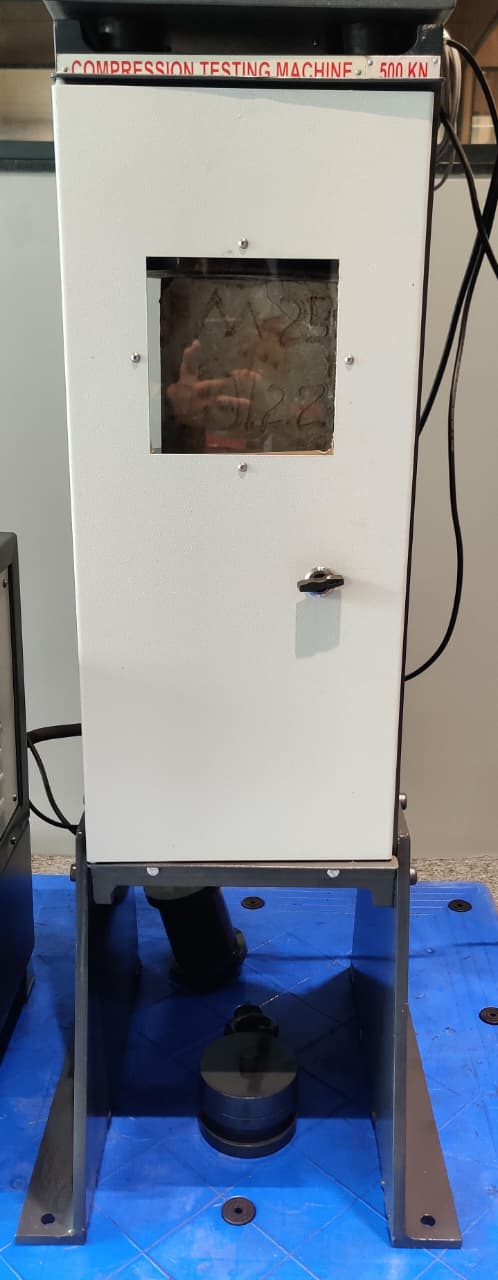

Frame:

1. Four-column, high-stiffness welded frame for superior stability.
2. Heavy-duty spherical seat for initial free alignment and automatic jamming during the test.
3. Surface hardness of platen: 55 HRC, flatness tolerance: 0.03 mm (traceable certificate available upon request).
4. Optional piston travel limit switch
5. Emergency stop button for safety.
6. Servo motor-driven design with live online graph displayed on a 7" touch screen.
7. User-friendly graphical display.
8. Displacement-controlled variant available (at extra cost).
9. Stores up to 100 test results on the touch screen.
10. Inbuilt USB drive for easy data transfer.

Salient Features of Data Manager PC Software (Optional)

1. Two-way communication: Operate the machine via PC or touch screen controller.
2. Results and graphs are saved directly in Excel format.
3. Records customer details, specimen aging, cube identification marks, and testing date/time.
4. Prints detailed reports directly from the computer.
5. Allows selection of test parameters such as pace rate, sample size, and area.
6. Supports various test types, including flexural, Split tensile, MOE determination and aggregate crushing with the use of optional attachments.
