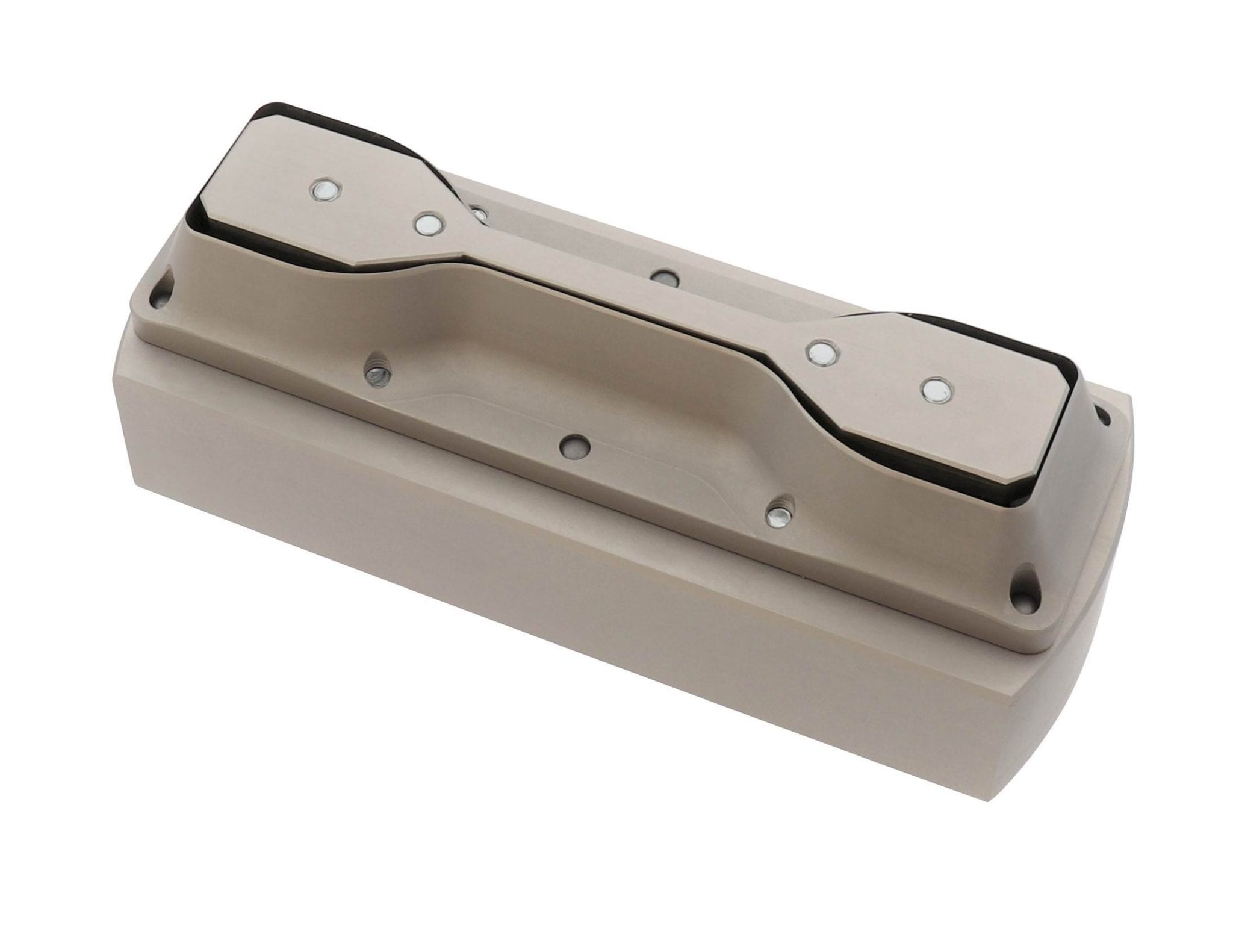

ASTM D638-SPECIMEN CUTTING DIE
Model Number : ASTM D638
Compliance standards : ASTM D638
TYPE OF DIE
- TYPE-I
- TYPE-II
- TYPE-III
- TYPE-IV
- TYPE-V
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
ASTM D638 - (TYPE - I) SPECIMEN DIE
Technical specification
ASTM D638-TYPE-I-SPECIMEN CUTTING DIE
|
Width of narrow section |
13 (0.50) mm |
|
Length of narrow section |
57 (2.25) mm |
|
Width overall, mm |
19 (0.75) mm |
|
Length overall, mm |
165 (6.5) mm |
|
Gauge length |
50 (2.00) mm |
|
Distance between grips |
115 (4.5) mm |
|
Radius of filet |
76 (3.00) mm |
