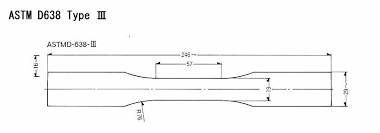

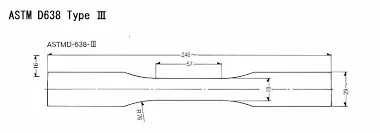

ASTM D638-TYPE-III-SPECIMEN CUTTING DIE

Width of narrow section

19 (0.75)

Length of narrow section

57 (2.25)

Width overall, mm

29 (1.13)

Length overall, mm

246 (9.7)

Gauge length

50 (2.00)

Distance between grips

115 (4.5)

Radius of filet

76 (3.00)
