ASTM D638-TYPE-I-SPECIMEN CUTTING DIE
Model Number : ASTM D638
Compliance standards : ASTM D638
TYPE OF DIE

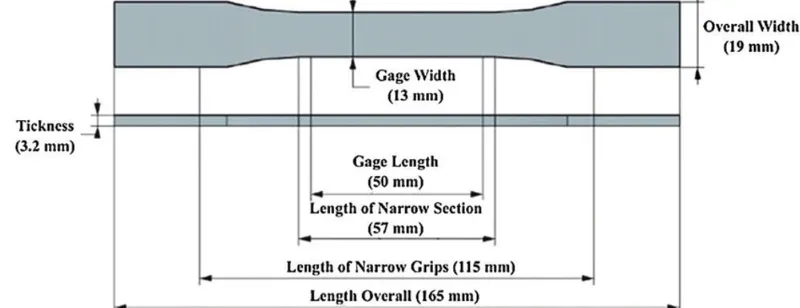

ASTM D638-TYPE-I-SPECIMEN CUTTING DIE
| Width of narrow section | 13 (0.50) mm |
|---|
| Length of narrow section | 57 (2.25) mm |
|---|
| Width overall, mm | 19 (0.75) mm |
|---|
| Length overall, mm | 165 (6.5) mm |
|---|
| Gauge length | 50 (2.00) mm |
|---|
| Distance between grips | 115 (4.5) mm |
|---|
| Radius of filet | 76 (3.00) mm |
|---|
