Job Application
Compliance Standards
ASTM D638
Applications:

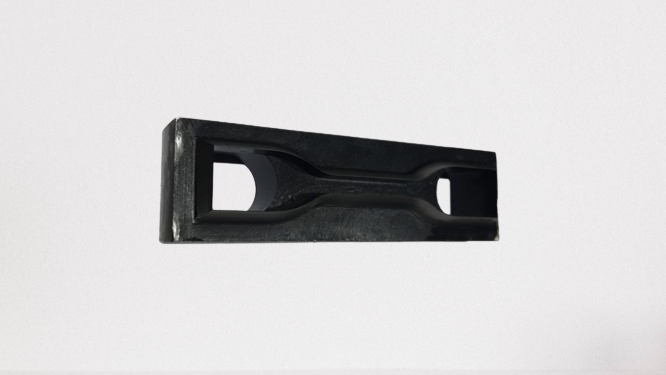

To prepare specimen for Tensile test of Plastic/Polymer material
|
Width of narrow section |
6 (0.25) |
|
Length of narrow section |
33 (1.30) |
|
Width overall, mm |
19 (0.75) |
|
Length overall, mm |
115 (4.5) |
|
Gauge length |
25 (1.00) |
|
Distance between grips |
65 (2.5) |
|
Radius of filet |
14 (0.56) |
|
Outer radius (Type IV) |
25 (1.0) |
|
Die material |
High chrome high carbon type |
|
Maximum cutting depth |
8 mm |
