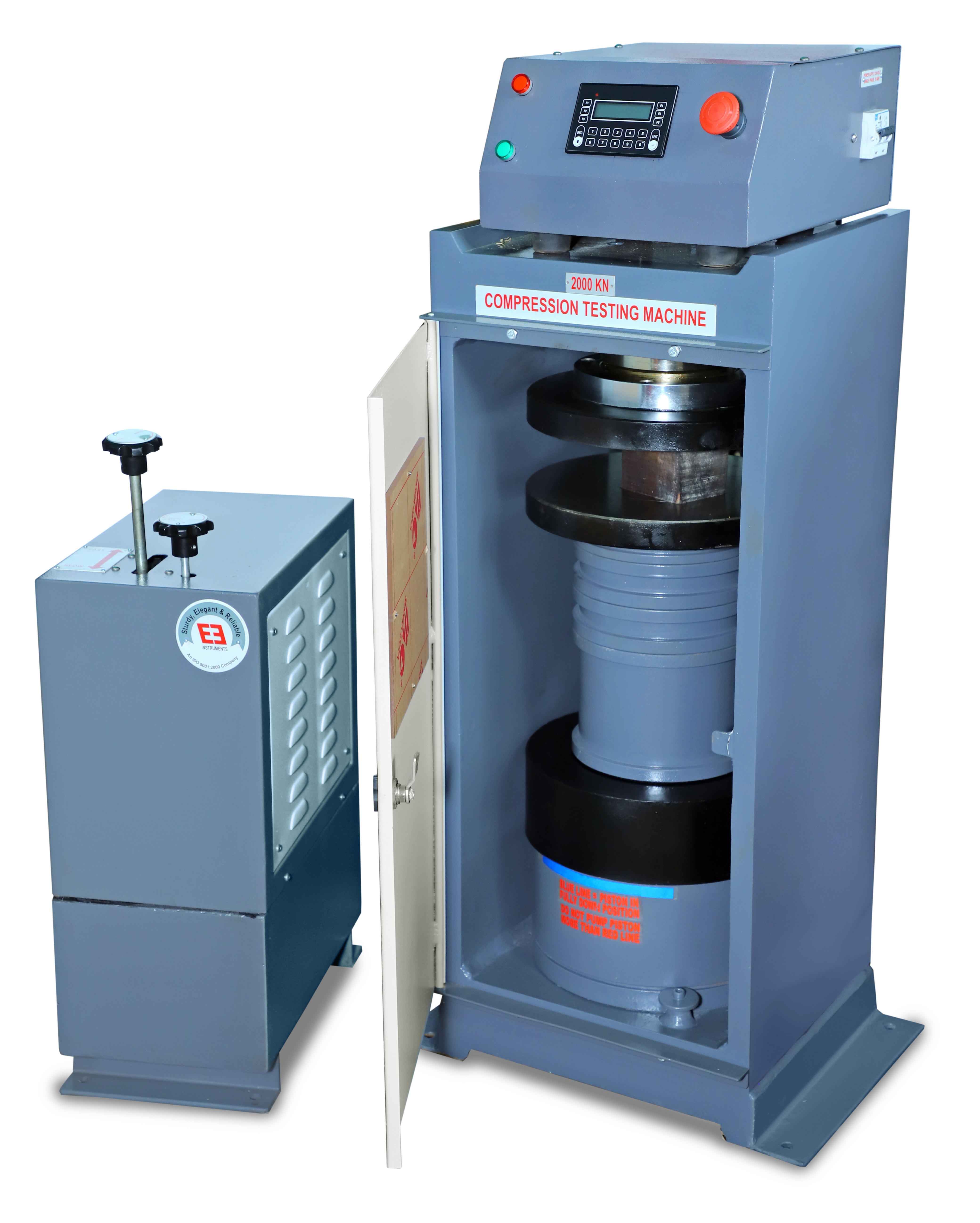

COMPRESSION TESTING MACHINE - 100 KN-DIGITAL - MANUAL PACE CONTROL

Model No: TM-042D.100.0

Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Manual pace rate control, auto stop and manual release on failure of test specimen. Reading of Load in KN and N/mm2 with auto calculation. with Pace Rate indication. Manual Pace rate Control will have certain limitations. CTM with Automatic Pace rate control is recommended for accurate Pace rate Setting. Further details as mentioned in Technical Part on following pages.

Compliance with following International Standards:

IS:14858 ‑ 2000 and IS 516

Introduction:

The digital compression testing machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength

The design expressive of simplicity, both of construction and operation, makes the machine easy to use and maintain.

The digital machines are provided with a MANUAL pace rate controller, to enable maintain a constant rate of loading.

Salient Features of EIE ‑ Digital CTM Machine:

2 line Alphanumeric display with backlite, displaying ‑ Actual Load / Peak load, Rate of loading and Calculated load in N/mm² (as soon as sample fails)
Four column high stiffness and high stability fully welded construction of the load frame.
Direct reading of compressive strength in N/mm2 ‑No calculation required.
Peak hold facility.
Can manually control pace rate from 1 KN/Sec to 20 KN/sec.
Pace rate indication in KN/Sec.
Bar Graph indication to control the pace rate
Built in memory for last 10 readings
Automatic internal calibration(without Proving ring)
Safety cut out for overload and electrical short circuit.
Safety door on the front side for operator safety.
Compact Pumping unit with manually variable rate of loading.

Scope of supply:

High strength rigid structure (Loading Frame)
Pumping unit (Oil source cabinet)
Digital Load indicator
High precision pressure transmitter
Pair of compression platens
High pressure hose pipe

Note :

Use of 3 KVA three phase servo controlled stabilizer is essential to protect the machine against voltage fluctuations. Warranty voids in case of any damage due to power fluctuation.

Capacity	100 KN
Platen size in mm	130 Dia
Ram Dia in mm	90 mm
Ram Travel in mm	50 mm
Vertical daylight in mm	200 mm
Horizontal daylight in mm	170 mm
Weight approx in kg	350 Kg.
Platen hardness	More than 550 Vickers hardness
Electric Motor	1 HP, Single Phase
Operation on	220 V AC Single Phase.
Least count	0.001 KN
Pace rate control	Manual control from 1 KN/Sec to 20 KN/sec
Overall Dimensions
