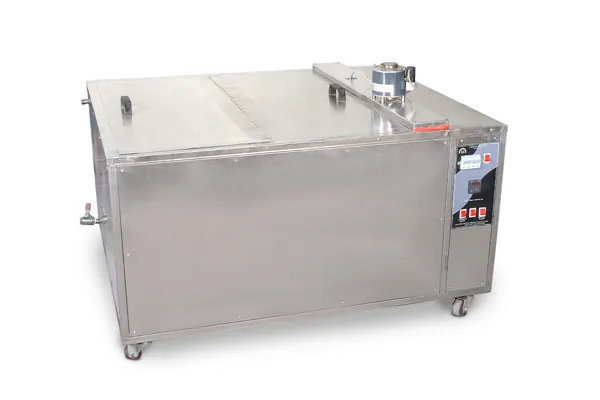

ACCELERATED CURING TANK-COMPLETE S.S.-FOR 24 CUBES OF 150MM-

Model Number : VIPL-042-24S

None

More Information
Techincal Specification

Accelerated Curing Tank having capacity to accommodate various sizes of concrete cube moulds or Cement mortar Cube Moulds, with a facility for accelerated curing by boiling water method up to temperature range : 100 +/‑ 2 deg.C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 +/‑ 2 deg.C. The whole body of cube mould with the sample of concrete/cement mortar inside is to be immersed in the tank and the Tank is stout enough toil bear heavy load on its platform.

Tank will consist of a rectangular double walled metal cabinet, inner chamber made of thick gauge stainless steel. Outer chamber also made of S.S.304 ‑ matt finished. Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes ny normal skilled person. It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water. Inside the chamber there will be a heavy gauge stainless steel perforated platform with ribs towithstand the heavy load of the cubes. It will also have a lid with lifting handle to cover the chamber.

The front panel will have power supply indicating lamp and one main switch suitable for operation on 440 V, 50 Hz Three phase, AC supply. It will also have a DIGITAL Auto tuning PID temperature indicator cum controller fitted on the front panel. Rating : 12 KW.

Inner chamber	Stainless Steel material S.S. - 304
Exterior body	Stainless Steel material S.S. - 304
Chamber Size	25" x 31' x 22" (W x D x H)
Chamber volume
Can accommodate	24 cubes of 15cm
Temperature controller	Microprocessor based Auto-Tune PID Digital Temp controller cum indicator
Temperature sensor	PT-100 Sensor
Temperature Accuracy	± 0.5 °C
Temperature Resolution	0.1 °C
Temperature Display	LED Display
Heating element	3 nos - each of 2000 Watts
Heater Types	Immersion heaters (Wet heaters)
No of SSR (Solid State Relay)	03 Nos
SSR Rating	25 Amp
Stirrer material	Stainless Steel
Stirrer Motor	1/83 HP, 1360 RPM
Operation on	230 Volts, 50 Hz, Single Phase, AC Supply
Power Consumption	6000 Watts (06 KW)
