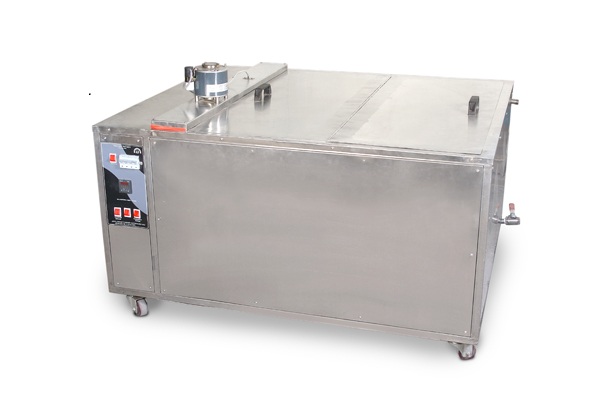

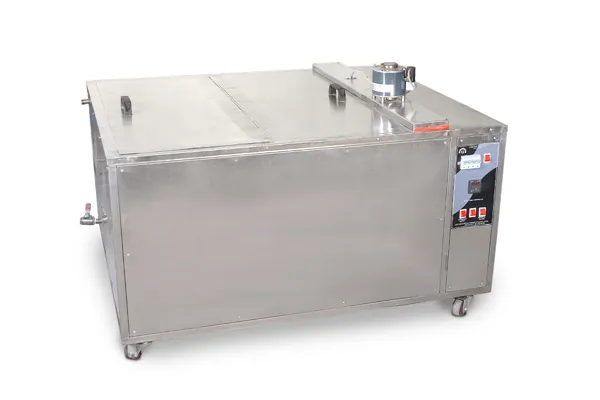

Accelerated Curing Tank having capacity to accommodate various sizes of concrete cube moulds or Cement mortar Cube Moulds, with a facility for accelerated curing by boiling water method up to temperature range : 100 +/‑ 2 deg.C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 +/‑ 2 deg.C. The whole body of cube mould with the sample of concrete/cement mortar inside is to be immersed in the tank and the Tank is stout enough toil bear heavy load on its platform.
Tank will consist of a rectangular double walled metal cabinet, inner chamber made of thick gauge stainless steel. Outer chamber also made of S.S.304 ‑ matt finished. Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes ny normal skilled person. It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water. Inside the chamber there will be a heavy gauge stainless steel perforated platform with ribs towithstand the heavy load of the cubes. It will also have a lid with lifting handle to cover the chamber.
The front panel will have power supply indicating lamp and one main switch suitable for operation on 440 V, 50 Hz Three phase, AC supply. It will also have a DIGITAL Auto tuning PID temperature indicator cum controller fitted on the front panel. Rating : 12 KW.
|
Inner chamber |
Stainless Steel material S.S. - 304 |
|
Exterior body |
Stainless Steel material S.S. - 304 |
|
Chamber Size |
|
|
Chamber volume |
|
|
Can accommodate |
36 cubes of (150 x 150 mm) |
|
Temperature controller |
Microprocessor based Auto-Tune PID Digital Temp controller cum indicator |
|
Temperature sensor |
PT-100 Sensor |
|
Temperature Accuracy |
± 0.5 °C |
|
Temperature Resolution |
0.1 °C |
|
Temperature Display |
LED Display |
|
Heating element |
3 nos - each of 2000 Watts |
|
Heater Types |
Immersion heaters (Wet heaters) |
|
No of SSR (Solid State Relay) |
03 Nos |
|
SSR Rating |
25 Amp |
|
Stirrer material |
Stainless Steel |
|
Stirrer Motor |
1/83 HP, 1360 RPM |
|
Operation on |
230 Volts, 50 Hz, Single Phase, AC Supply |
|
Power Consumption |
6000 Watts (06 KW) |
|
Overall Dimensions |
2000 X 1340 X 965 (L X W X D) mm |
|
Weight (Approx.) |
