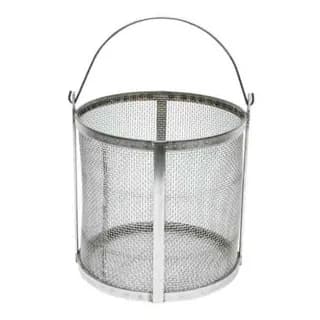

DENSITY BASKET
A S.S.wire basket of not more than 6.3 mm mesh or a perforated container of convenient size. with wire hangers not thicker than one mm suspending it from the balance, as per IS:2386 (Part III)

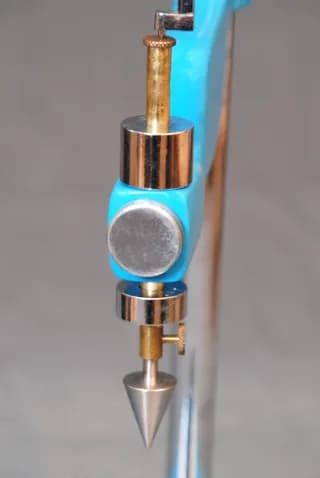

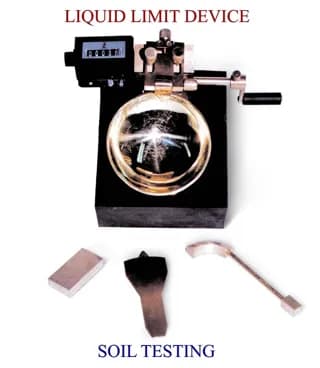

LIQUID LIMIT DEVICE
AS PER IS : 2720 (PART‑V) with Revolution Counter and Grooving tools.

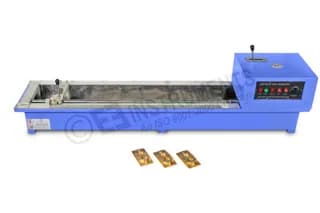

DUCTILITY TESTING MACHINE
Bitumen Ductility Testing Machine as per (IS:1208) Used to determine the ductility of bitumen by measuring its elongation before breaking under controlled conditions. Helps evaluate adhesion and flexibility for pavement applications.Semi-automatic, non-digital model with thermostatic temperature control. Supplied with 3 Nos. ductility moulds. Available in refrigerated and non rerigerated models. Elastic recovery moulds available separately

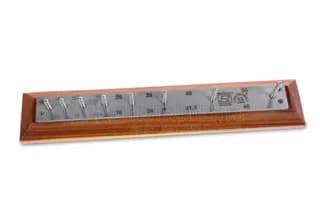

LENGTH GAUGE
Used to determine the Elongation Index of the Aggregate. Aggregate particles are considered elongated when their length is more than 1.8 of the nominal size.It consists of a hard wooden base with vertically mounted metal studs as specified in the IS.

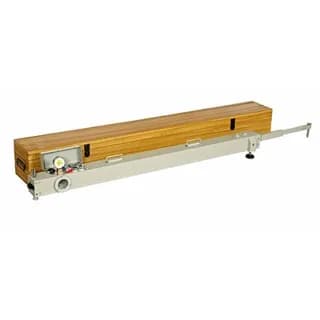

BENKLEMAN BEAM APPARATUS
The Benkelman Beam test is widely used to evaluate the deflection of flexible pavements under a standard wheel load, which helps assess the structural condition and design appropriate overlays. As per IRC: 81-1997, ASTM D4694, AASHTO T 256

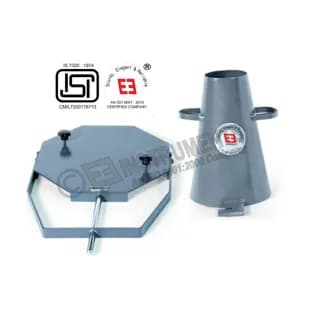

VEE BEE CONSISTOMETER-IS 10510
As per IS:10510-1983 and IS:1199-1959, Consists of a vibrating table (380 mm × 260 mm) resting on elastic supports at about 305 mm height, complete with start/stop switch, cord, and plug. A holder with detachable swivel arm is provided, fitted with funnel, guide sleeve, and graduated rod with plastic disc to record slump in mm.Supplied complete with sheet metal container with lifting handles, slump cone (open at both ends), and tamping rod (16 mm dia × 600 mm long, rounded at one end).

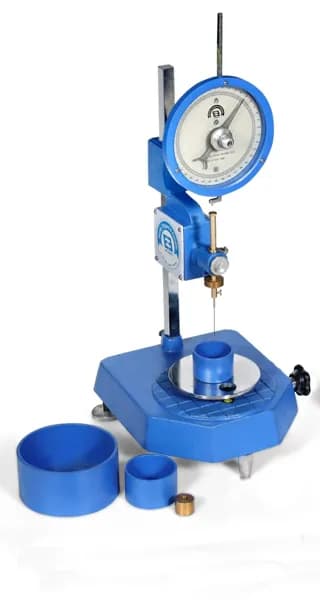

STANDARD PENETROMETER FOR BITUMEN
Our standard bitumen penetrometer is a precision instrument designed for accurate and consistent penetration testing of bituminous materials. This essential tool for quality control in road construction and asphalt production helps determine the consistency and hardness of bitumen samples.

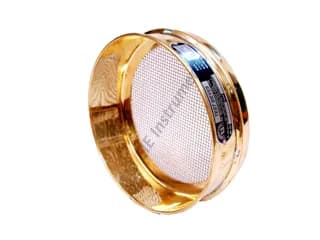

FINE TEST SIEVE
High-quality Test Sieve (200 or 300mm diameter) made from rolled Brass or Stainless Steel (S.S.304) with a seamless spun body and beaded top edge for extra strength. Features a tight-fitting design for stack stability and comes with stainless steel wire mesh (below 2.36mm) or punched plate (above 2.36mm), ideal for accurate particle size analysis in laboratories and industries. Available with Calibration certificate.
DIGITAL UNCONFINED COMPRESSION TESTER
The Unconfined Compression (UC) Test is a special case of the triaxial test where no confining pressure is applied to the soil sample. It is applicable only for cohesive soils and determines the compressive strength of the soil in an undrained condition. Complete with 3 speed Digital Load Frame, Built in Digital Load and displacement Indicator. As per IS:2720(Part 10)/IS: 4332 (Part V). Can also be supplied as per ASTM D2166/D2166M/ BS 1377-7/AASHTO T208.

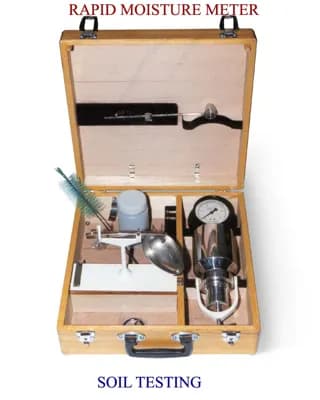

RAPID MOISTURE METER-WITH PRESSURE GAUGE
The unit consists of a pressure vessel with clamp for sealing cap, rubber sealing gasket, pressure gauge calibrated in percentage moisture content 0 - 25% X 1% or 0 - 50% X 1% on the wet weight basis, a counter poised balance for weighing sample or a pocket type electronic weighing balance, a scoop for measuring carbide reagent, a bottle of reagent, one cleaning brush and a set of 4 steel balls (3 OF 12.5MM AND 1 OF 25MM DIA) for thorough mixing. Complete in highly polished wooden carrying case with handle.

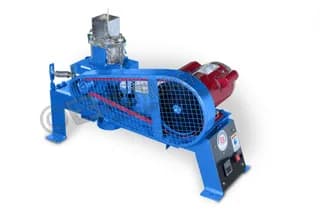

VIBRATING MACHINE FOR CEMENT MORTAR - IS : 10080
The machine is capable for compaction of cement mortar cubes as per IS: 4031 and designed as per Standard IS : 10080. The complete frame assembly consists of device to hold a 7.06 cm cube mould to feed the sample in the mould. The frequency of vibration is 12000 ± 400 R.P.M. Vibration per minute. Supplied complete with one 7.06 cm cube mould and a DIGITAL Timer. Complete with One No. poking rod to meet IS: 10080 requirements.

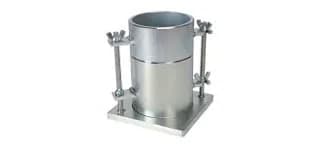

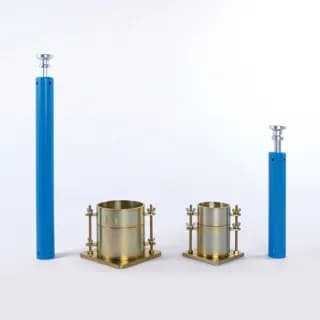

PROCTOR COMPACTION MOULD 100MM DIA - IS 10074
Standard compaction mould, As per IS 2720 (Part VII) 1980 and IS 10074-1982. With base plate and collar. Proctor Rammer available at extra cost. Also available as per ASTM D1557 / BS 1377-4
MODIFIED PROCTOR COMPACTION MOULD 150MM DIA - IS 10074
As per IS 2720 (Part VIII) and IS:10074-1982. Complete with base plate and collar. Proctor Rammer avaiable at extra cost. Also available as per ASTM D1557 / BS 1377-4

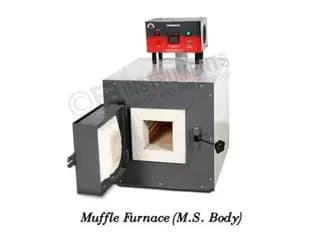

LABORATORY FURNACE
High-performance laboratory Muffle Furnace designed for precise heat treatment, ashing, and material testing applications. Built with a durable CRC sheet outer chamber, powder-coated for long-term protection. The heating chamber features grooved refractory bricks and Nichrome/Kanthal heating elements arranged in coil form for uniform temperature distribution. Controlled by a dual-display microprocessor-based digital temperature controller with K-type sensor and compensating cable. Operates on 230 V AC with models available up to 900°C and 1200°C (working temperatures 850°C and 1150°C).

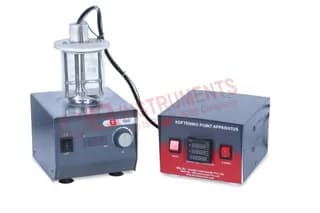

RING AND BALL APPARATUS
The Ring and Ball Apparatus is a precision testing instrument specifically designed for determining the softening point of bituminous materials, such as asphalt and pitch. This apparatus operates on the principle of heating a substance along with two horizontal rings until the material softens and flows down at a specific temperature, indicating its softening point.

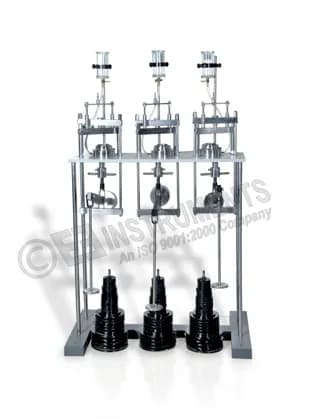

CONSOLIDATION APPARATUS
AS PER IS :2720(PART-XV) Consists of Loading Unit, maximum capacity 20 kg/cm2 consisting of a loading yoke connected to a lever arm with a counter balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand. Choice of 1 or 3 or 6 Nos.Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens.

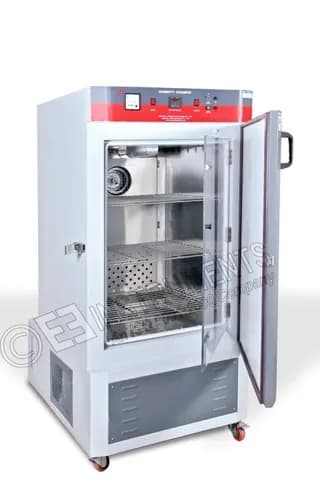

HUMIDITY CHAMBER-45X45X45 CM
A humidity chamber, also known as a climatic chamber or environmental chamber, is widely used in laboratories to simulate different environmental conditions such as temperature and humidity. These chambers allow controlled conditions to test the performance, durability, and stability of various materials, products, and components when exposed to different environmental factors. The primary purpose is to ensure that the material or product can withstand specific climate-related stresses. Humidity chambers are essential tools across various industries for simulating environmental conditions that products might encounter during their lifecycle.
HUMIDITY CHAMBER-90X60X60 CM
A humidity chamber, also known as a climatic chamber or environmental chamber, is widely used in laboratories to simulate different environmental conditions such as temperature and humidity. These chambers allow controlled conditions to test the performance, durability, and stability of various materials, products, and components when exposed to different environmental factors. The primary purpose is to ensure that the material or product can withstand specific climate-related stresses. Humidity chambers are essential tools across various industries for simulating environmental conditions that products might encounter during their lifecycle.

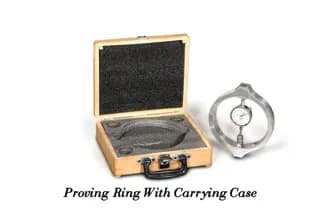

COMPRESSION PROVING RING-25 KN
As per IS 4169:2014 (ISO 376:2011, Reaffirmed 2020). Proving rings are typically made from high-grade steel alloys, chosen for their elastic properties and durability. The special manufacturing process ensures the consistent and precise force measurements. Available in the capacity ranging from 0.5 KN to 3000 KN.

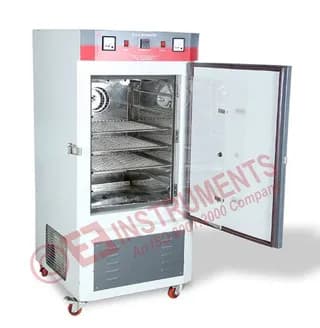

STABILITY TEST CHAMBER (Humidity Chamber)
Achieve precise environmental testing with our Humidity & Stability Test Chamber. It offers accurate control of temperature and humidity, which is ideal for stability testing in pharmaceuticals, cosmetics, and electronics. It is durable, user-friendly, and designed to meet industry standards and ensure reliable results.
